Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: RF

Packaging & Delivery

Packaging Details Wrapping with film
Delivery Time 20days

Specifications

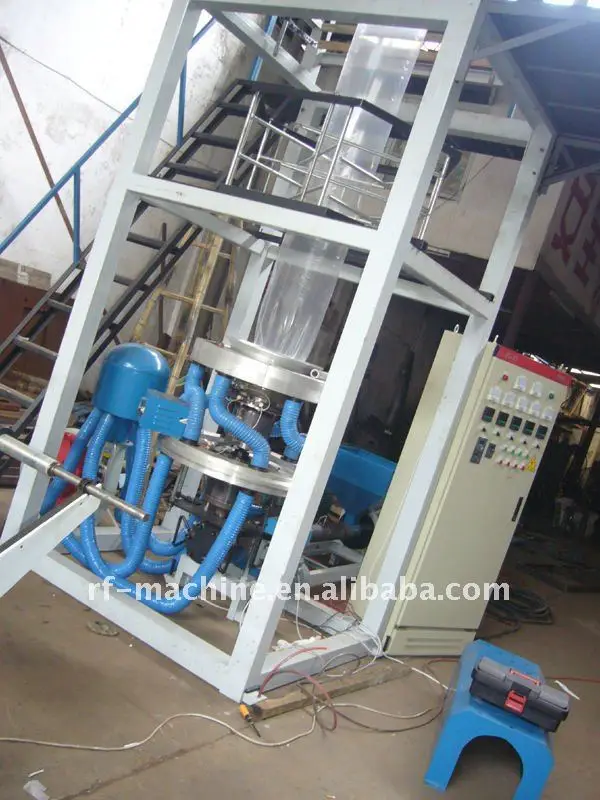

SJ Series PE Plastic Shrink Film Blowing Machine can produce differnt width PE in different thickness with good performance.

USE

SJ Series PE Plastic Film Blowing Machine can produce differnt width PE in different thickness with good performance.



FEATURE

1.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity.

2.The screw and material barrel adopt 38 CRMOALA which has been nitrogen treated

3.The traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Main technical parameters:

Model
SJ-50
SJ-55
SJ-60
SJ-65
Screw diameter
50mm
55mm
60mm
65mm
Screw ratio
L/D28:1
L/D28:1
L/D28:1
L/D28:1
Screw speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
Main output
25-35kg/h
35-50kg/h
55-65kg/h
55-70kg/h
Main motor power
7.5-11kw
11-15kw
15-18.5kw
18.5-22kw
Die head specifixcation
60-120mm
100-170mm
100-170mm
120-220mm
Die head rotational mode
Continuous rotation
Continuous rotation
Continuous rotation
Continuous rotation
Film single-layer thickness
0.01-0.10mm
0.01-0.10mm
0.01-0.10mm
0.02-0.10mm
Film max.folding width
600mm
800mm
1000mm
1100mm
Total powder
22kw
26kw
30kw
42kw
Machine weight
2000kg
2300kg
2000kg
3800kg
Overall dimensions
4500×1800
×3500mm
5500×2000
×3800mm
6000×2200
×4200mm
6000×2400
×4300mm
Rotary Die Head

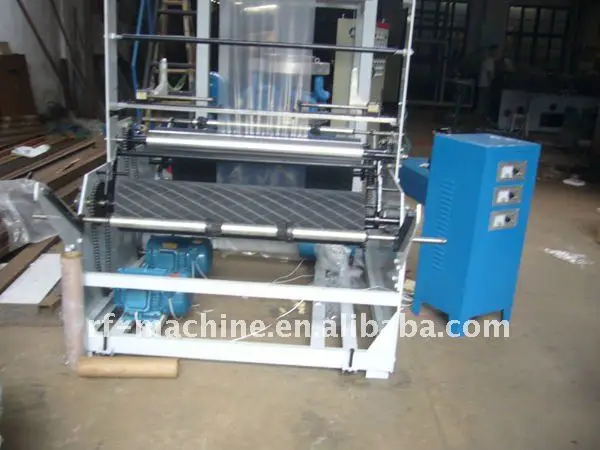

Twon rewinding station
