Quick Details

  • Condition: New
  • Machine Type: Bag Forming Machine
  • Bag Type: Other
  • Material: paper +bubble film
  • Computerized: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: RF
  • Model Number: DISQ-700
  • Certification: ce/iso
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details wrapping with film
high speed kraft paper Bubble Mailer making machine Hot sale
Delivery Time 45days

Specifications

DISQ-700 Two Side Seal kraft paper bubble envelope machine .whith PLC .hot melt glue. servo motor

High speed kraft paper Bubble Mailer making machine Hot sale

Product Description



This machine is special designed to make the bubble mailer from craft paper with bubble linings.



It combines two layers Kraft paper and two layers PE bubble film together by hot melt glue.



Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag







This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice





Main technical parameters:



Model

DISQ-700A

Suitable material

kraft paper 70 -110gsm (coated or non-coated)+PE bubble film

Max design speed

80 pcs/min (can make two at one cut when small size)

Max reel width

700mm

Max Bag width

500mm

Max Bag length

680mm

Compressed air

0.8Mpa

Power supply

AC380v 50HZ 24KW

weight

3200KG

Overall dimension(L*W*H)

15640*1560* 2630mm

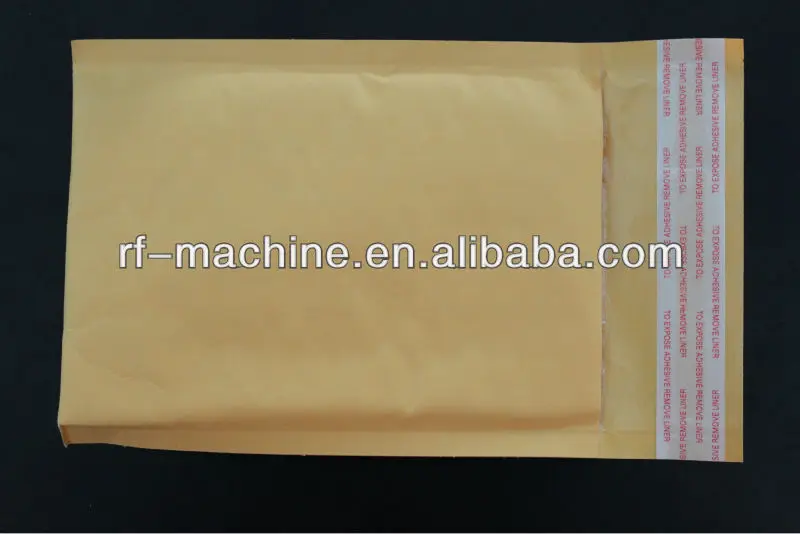

 Sample bag




---we also offer three side seal kraft paper bubble maier making machine
